sleeve sealing film shrink wrapping packing machine

Single or scattered products are not easy to carry and circulate. We can use a cuff-type heat shrink machine to cover multiple products in a matrix with PE/PVC shrink film, wrap them and seal them together, and cover several or even dozens of products at a time. Then put the film into the shrink furnace to shrink and tighten the film, so that several or dozens of products can be bundled together, which is firm and stable, convenient and efficient for transportation and storage.

A sleeve-type heat shrink packaging machine is a commonly used packaging equipment designed for heat shrink wrapping of products. Here’s how it works:

1. Product Feeding: The product is conveyed into the working area of the packaging machine through a conveyor belt or another feeding system.

2. Sleeve Formation: The heat shrink film is drawn out and forms a sleeve-like structure. The product is pushed into this sleeve. This sleeve is typically formed by two heat-sealing bars or hot knives, ensuring that both ends of the film are open, allowing the product to pass through.

3. Heat Sealing and Cutting: Once the product is pushed into the sleeve, the heat-sealing device heats and seals the film, while simultaneously cutting off the excess film to form an individual package.

4. Heat Shrink Process: The sealed package then enters the heat shrink tunnel (usually a hot air circulation oven). In this tunnel, hot air causes the heat shrink film to shrink rapidly, tightly wrapping the product. The temperature and shrink time can be adjusted according to different film materials and product requirements.

5. Cooling and Discharge: After the heat shrink process, the product passes through a cooling zone to set the shrink film. It is then conveyed out of the packaging machine, completing the entire packaging process.

Advantages

• Tight Packaging: The heat shrink film wraps tightly around the product after heating, providing excellent protection and stability.
• Aesthetic Appeal: The high transparency of the shrink film offers a visually appealing packaging effect, enhancing product display.
• Versatility: Suitable for various shapes and sizes of products.

Applications

Sleeve-type heat shrink packaging machines are widely used in industries such as beverages, food, cosmetics, and pharmaceuticals, for single or multiple product packaging.

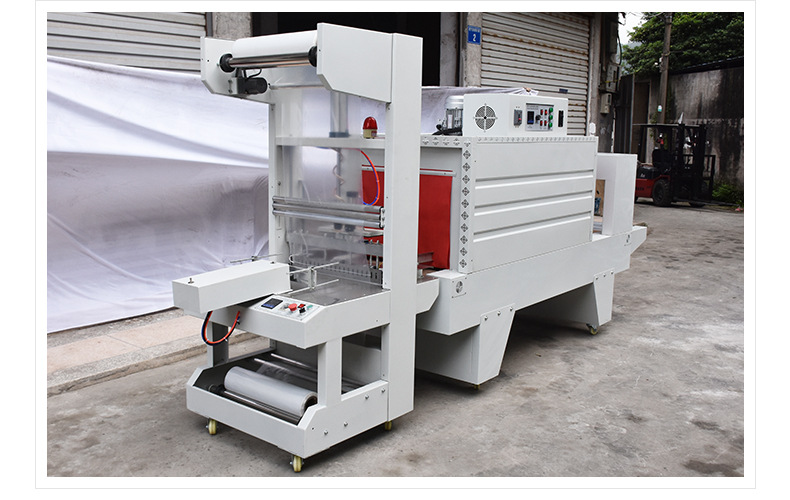

Illustration

By following this process, sleeve-type heat shrink packaging machines efficiently complete the heat shrink wrapping of products, improving production efficiency and packaging quality.
