   Home > Our Products > Strapping Machine > KPW-SDJ150 Tabletop Banding Machine for

Strapping Machine

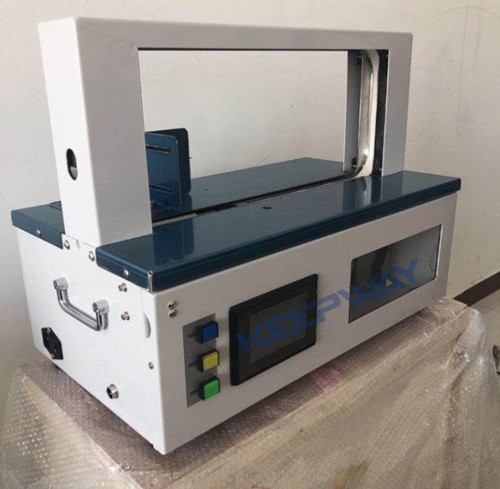

KPW-SDJ150 Tabletop Banding Machine for Small Cartons and Paper Stacks

  • Category: Strapping Machine
  • Views:2015
  • Model: KPW-SDJ150 tabletop bander
  • Maximum bundle section: 470 × 205 mm (W × H) at the band position
  • Minimum bundle section: 30 × 10 mm (W × H). Check how the smallest stack is held.
  • Supply options: single-phase 110 V or 220 V, 50/60 Hz
  • Product description:Plan a KPW-SDJ150 tabletop banding station for paper stacks or small cartons. Check bundle size, paper or OPP band width, bench space and sample fit.
  • INQUIRY

Can an operator keep the band clear of the barcode on a tabletop machine?

On your bench, choose a carton edge the operator can see before each cycle. Measure from that edge to the intended band centre and mark the area around the barcode that must stay clear. Run a short batch, remove the packs as usual and scan the first and last finished cartons. Include loading, unloading and roll changes when timing the job.

Quote the bench setup or the printed-band job?

The KPW-SDJ150 pages describe different buying decisions for the same model. For a staffed bench, send a side view showing where cartons arrive and where finished packs are set down. If the roll carries printed artwork, also send its repeat length and a marked carton face for a registration trial.

For a retail barcode, check its placement and clear area on the finished banded carton. GS1 US barcode placement guidance.

Fit a tabletop bander into a small packing bench

A tabletop KPW-SDJ150 needs room for incoming bundles, band supply and finished packs. Plan access around the workstation as well as the machine footprint.

Stack or coil? For a stack of leaflets or small cartons, measure the width and height across the proposed band, then send a photo showing the band position. For cable or hose wound into a ring, measure the local section where the band will close and the inside opening separately.

Ask about a stack or carton

Compare the open-arch coil bander

Compare the band contact area

Hands holding a small carton with a white band across its lid on the tabletop bander
The white band crosses the closed lid of the sample carton. Mark where the band should sit on your own pack and tell us whether a printed panel needs to stay visible.
Illustrated sample guide: Compare the band contact area. pack width, pack height, band contact.
Place a strip of the proposed band width on a representative pack. Photograph the face and corner before choosing a trial setup.
Read the three sample checks
  1. Pack width — Measure the packed bundle at the band line.
  2. Pack height — Show both the smallest and largest bundles.
  3. Band contact — Mark the corner, flap or printed area to inspect.

Will a tabletop banding machine hold this carton without denting it?

Start with your softest carton or thinnest paper stack. Compare the corners and band joint on the same sample before and after normal handling. Tell us which marks or movements would make the pack unacceptable.

For leaflets or cards, measure the same edge before banding and after the stack reaches its tray. Use the paper-stack transfer check to record the largest protruding sheet and your permitted offset.

Email a close-up of the band joint and the corner after handling to sales@kbwmachinery.com.

Tabletop banding machine — application illustration showing the carton corner and the band joint to inspect on a representative paper-banded bundle.
Application illustration showing the carton corner and the band joint to inspect on a representative paper-banded bundle.

Automatic OPP/Paper Banding Machine


Introduction of Automatic OPP/Paper Banding Machine:

Use the product details below together with the configuration checks for this application.



Technology Parameter of Automatic OPP/Paper Banding Machine:

KPW-SDJ150 paper / OPP banding machineBand materialPaper / OPPMaximum bundle size (W × H)470 × 205 mmMinimum bundle size (W × H)30 × 10 mmBand width20 / 30 mmAdjustable tension5–50 NBanding speedLess than 3 seconds per bundlePower80 WPower supplySingle phase, 110 / 220 V, 50 / 60 HzMachine weight35 kgMachine size (L × W × H)642 × 354 × 476 mmCustom band and arch configurations must be specified separately when requesting a quotation.


Features of Automatic OPP/Paper Banding Machine

Banding machine feature icons illustrating tape, controls and temperature adjustment


Paper banding examples with reel compartment, foot switch and carry handle details

Small carton secured with a paper band on a tabletop banding machine

Product Banding Effect:

Banding material rolls beside bundles of printed packaging and small cartons

Company presentation collage with workshop, team, document and shipment photographs

What to agree for this banding job

Provide space for the real workflow

Sketch incoming and outgoing stacks and the operator position without assuming an automatic transfer system.

Allow material replenishment

Show reel access and where replacement bands will be stored; confirm any stand or dispenser separately.

Sample acceptance plan

Review reach, handling and roll-change access using a layout and your largest sample bundle.

This is a proposed review, not a published test result. Agree the samples, conditions and scope before arranging a trial.

Send a brief for a matched quotation

Bench dimensions, product range, band roll, work height and destination electrical supply.

Send my banding requirements

Two-year warranty, free replacement parts and their shipping during the warranty period, and lifetime after-sales service.
